Series SM-L
Specs
| Model | SM4L | SM6L | SM8L | SM10L | SM12L | SM14L | SM16L | |
|---|---|---|---|---|---|---|---|---|
| Capacity | cars | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| Size | Length (mm) | 6370 | ||||||
| Width (mm) | 5050 | |||||||
| Height (mm) | 5870 | - | 9850 | 11680 | 13500 | 15400 | 17200 | |
| Load | Total Load (TONE) | - | 28.6 | 33.7 | 39.8 | 47.8 | 54.1 | 61 |
| Total Load per Column (TONE) | - | 7.2 | 8.4 | 10 | 12 | 13.5 | 15.3 | |
| Engine | kw x 4poli | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 15 |
| Speed | meters/min (rpm) | 3.5 (0.9rpm) | 3.6 (1.0 rpm) | 5~8 (1.3rpm) | ||||
| Electrical Supply | AC380V, tri-phase, 50/60Hz | |||||||

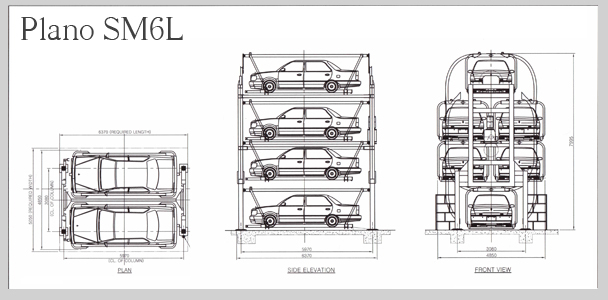

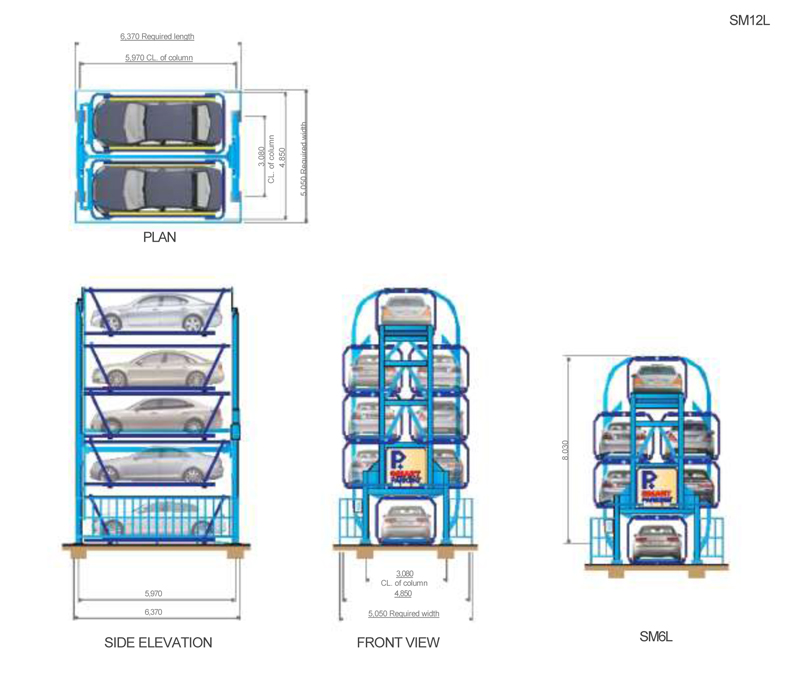

Planes

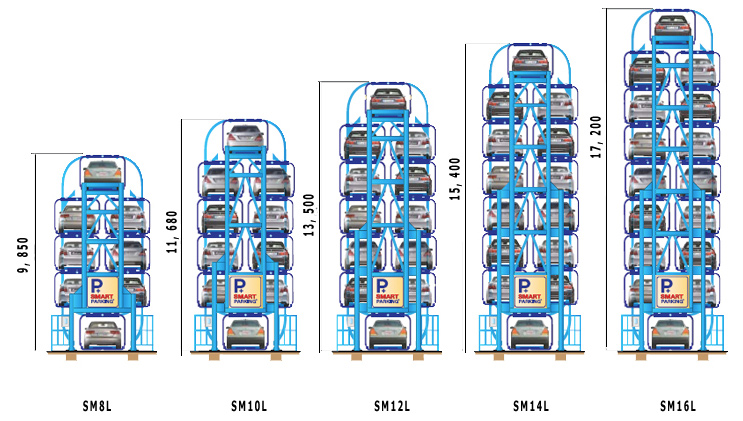

Capacity
