Serie-SM-SU
Especificaciones
| Model | SM4SU | SM6SU | SM8SU | SM10SU | SM12SU | SM14SU | SM16SU | |
|---|---|---|---|---|---|---|---|---|
| Capacity | cars | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| Size | Length (mm) | 6370 | ||||||
| Width (mm) | 5050 | |||||||
| Height (mm) | 5870 | - | 9850 | 11680 | 13500 | 15400 | 17200 | |
| Load | Total Load (TONE) | - | 33.4 | 39.2 | 46 | 53.8 | - | - |
| Total Load per Column (TONE) | - | 8.4 | 9.8 | 11.5 | 13.5 | - | - | |
| Engine | kw x 4poli | - | - | 9.2 | 10 | 11 | - | - |
| Speed | meters/min (rpm) | - | - | 4 ˜ 5 | 4 ˜ 5 | 4 ˜ 5 | - | - |
| Electrical Supply | AC380V, tri-phase, 50/60Hz | |||||||

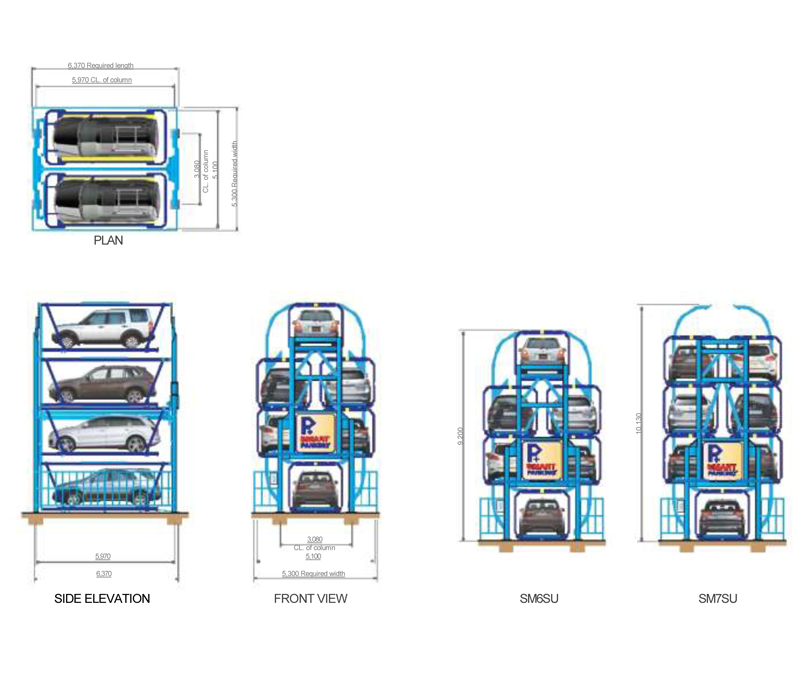

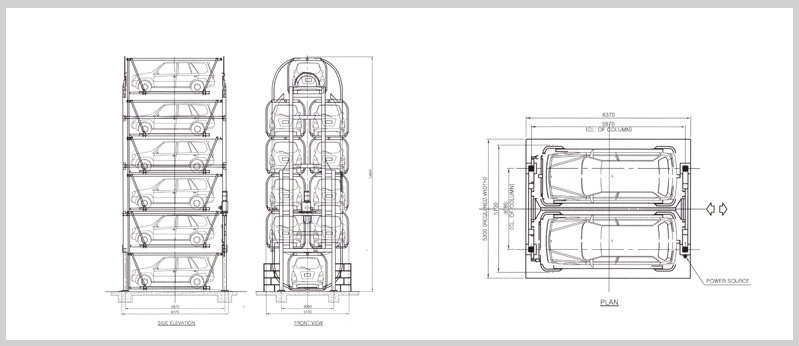

Planos

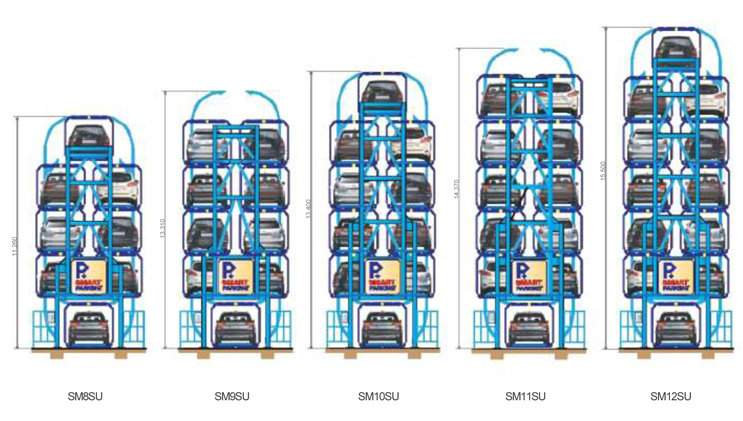

Capacidades
